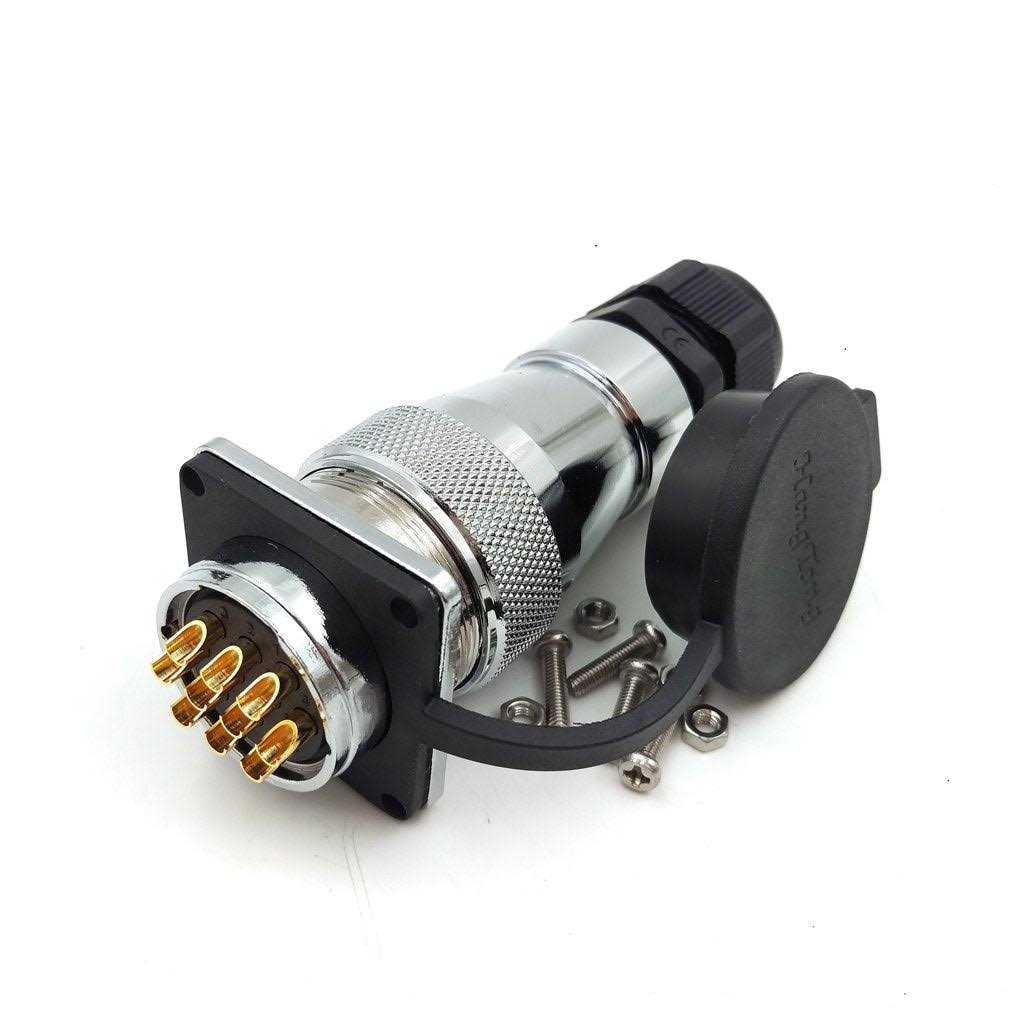

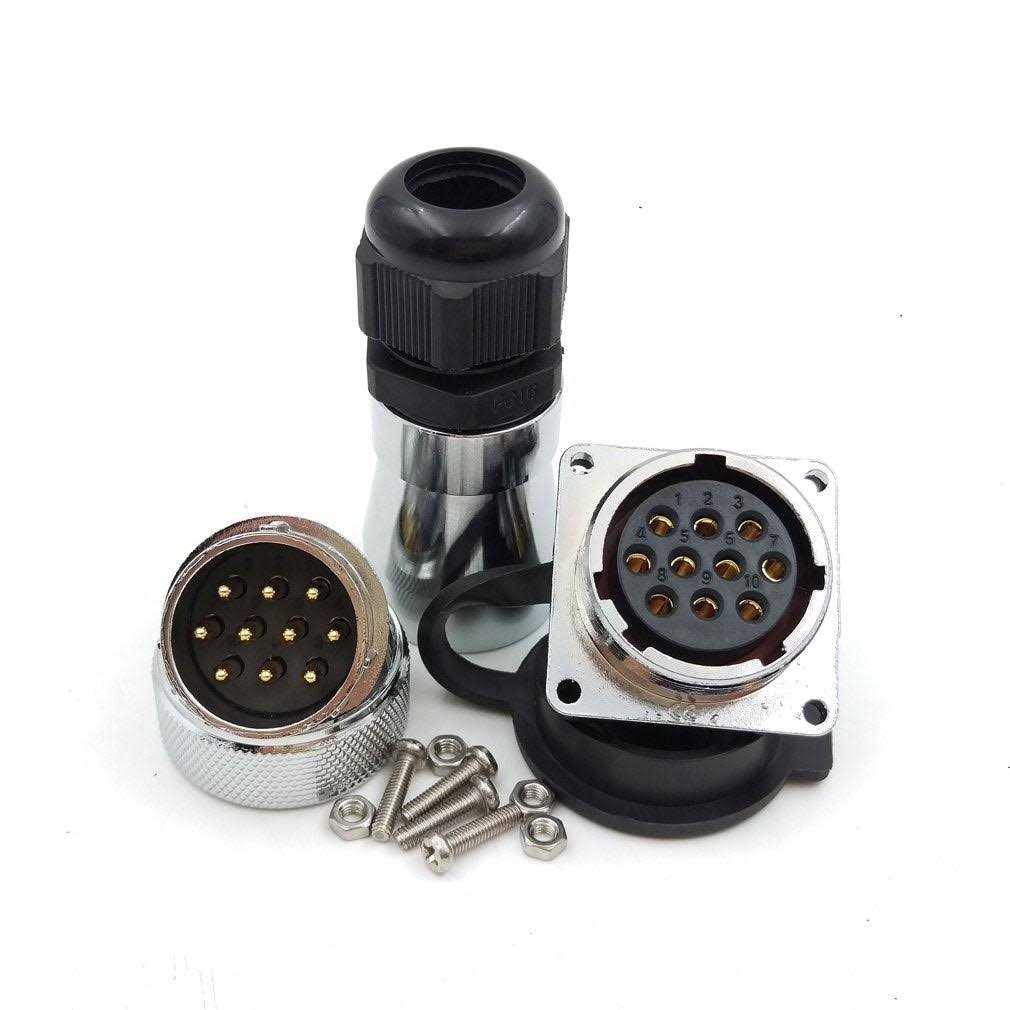

WF28 10 pin Industrial Electrical Power Cable Connector 10 pins Waterproof Connector Socket IP67

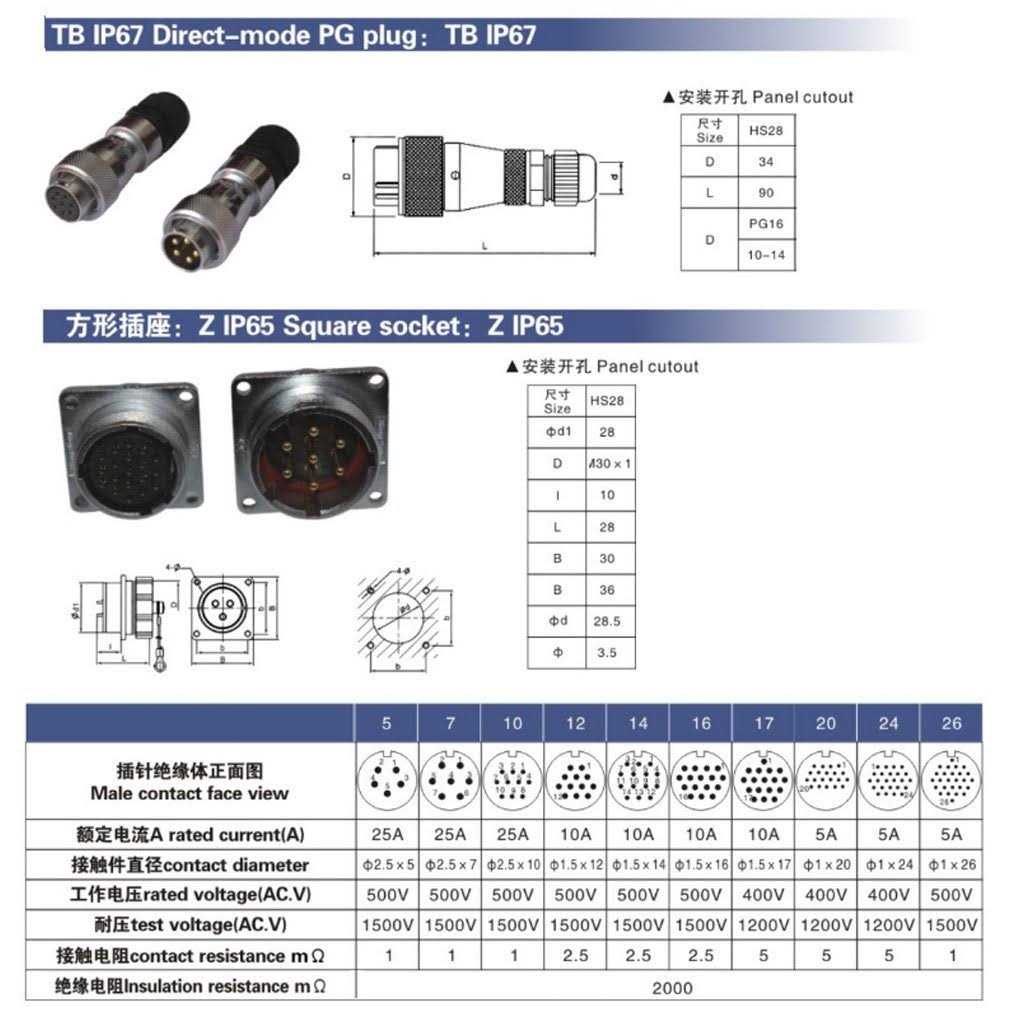

WF28 10pin 500V AC high voltage heavy industrial power solder connector, φ28mm panel cut Contact: φ2.5mm*10(Gold plated copper), 25A / 500V, Contact resistance: 1 mohm Wire: <2.5mm= AWG12-16, Cable: 10-14mm, Connected size: 4.1*1.3inch / 104*33.8mm Pin number available: 5/7/10/12/16/17/20/24/26pin, Plug: IP20, socket: IP67 Professional and trusted power connector wholesale and retail supplier. Waterproof level: Socket- IP67 WITH CAP ON SOCKET, PLUG-IP44 WITHOUT CAP Product name: WF28 10pin heavy industrial metal power connector Contact: φ2.5mm*10(Gold plated copper) Rated current: 25A Working voltage: 500V Test voltage: 1500V Contact resistance: 1mΩ Insulation resistance: 2000mΩ Wire: <2.5mm = AWG12-16 Cable: 10-14mm IP rating: Plug: IP20, socket: IP67 Mating cycle: 500times Temperature range: -25~+65°C Shell material: zinc alloy Pin number availalble:5/7/10/12/16/17/20/24/26 pin Connector whole size: 4.1*1.3inch / 104*33.8mm

Order Processing: After your payment is authorized and verified, we will start processing your order and this process can take from 1 to 2 business days, so please be patient with us. If we are unable to process your order due to inaccurate or incomplete payment or incorrect address information, your order processing may be delayed.

Carrier: UPS/FedEx/USPS. Delivery Timescale: More than 90% of orders arrive in 10 business days after despatch.

FREE RETURNS on all orders!
The following conditions must be met:

1. Items must be returned within 30 days after the purchase date.
2. Items must be unworn, undamaged and in original packaging.
