TWTADE Waterproof Momentary Reverse Polarity Switch 12V 10 Amps DC Motor Control 6 Pin 3 Position/Off/ Metal DPDT Toggle Switch

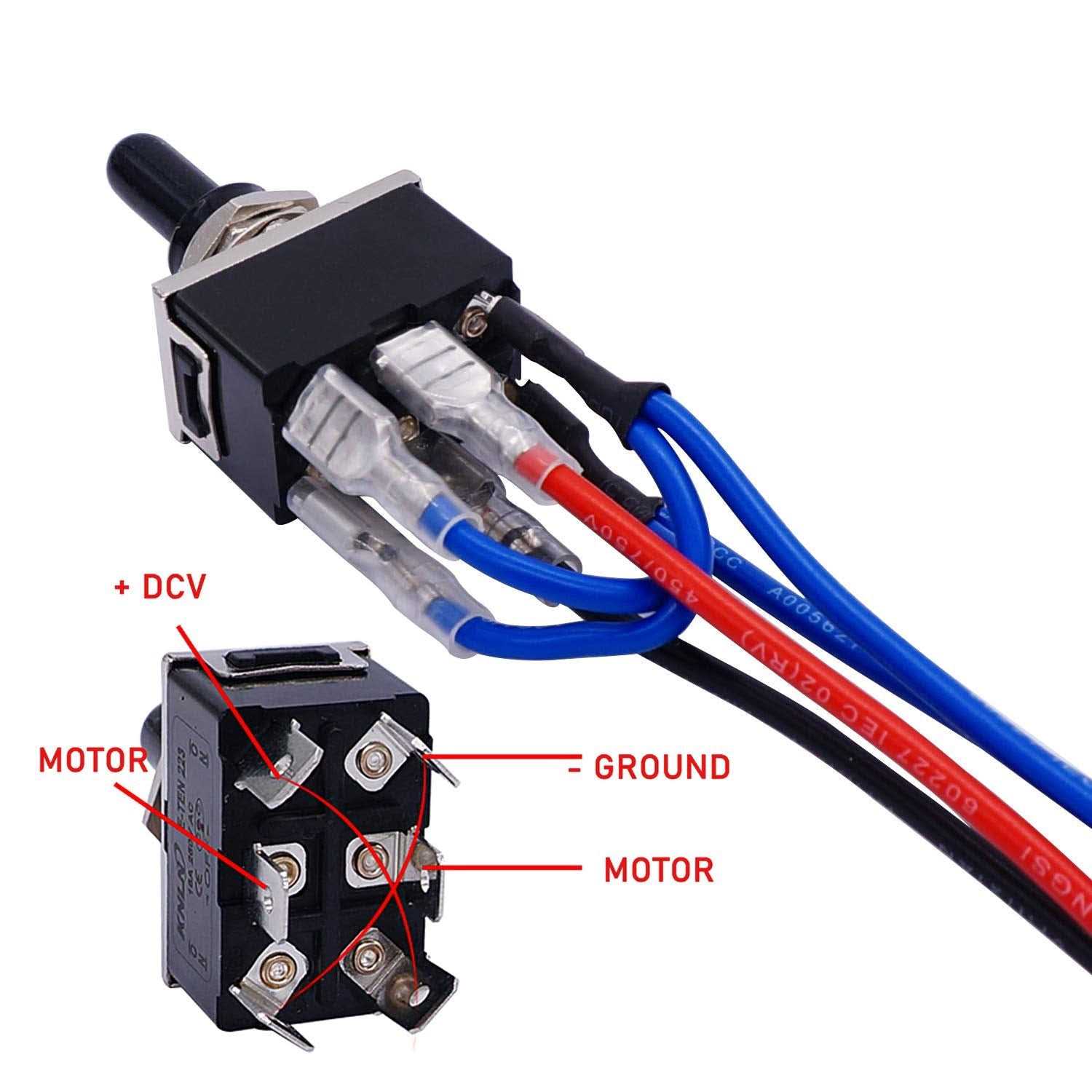

Product name: Toggle Switch With Wire (Momentary) . Wires with female .250 plugs crimped and installed. – This switch is momentary meaning it springs back to the center off position when the toggle is released. The switch will reset automatic back to off if released. The DC motor will reverse the motor direction with switch when hooked red to + V DC and Black to – V DC Blue to Motor. – It is configured for polarity reversing. Simply connect power and ground and two DC motor leads and the switch will reverse the motor direction. Toggle Switch Total Size:59mm x 32.7mm x 19.5mm/2.3″x1.28″x0.77″(L*W*H);Line length: 21.2cm/8.3” ;Mounting hole diameter: 12mm/0.47”;Spade Terminal Diameter:6.4mm /0.25” Product specification:20 A at 12V DC and 10 A at 24V DC Product package:A toggle switch that is crimped and installed with 12 wires.( Contacts is Silver Alloy). – This device is used to control the direction of motor rotation.
