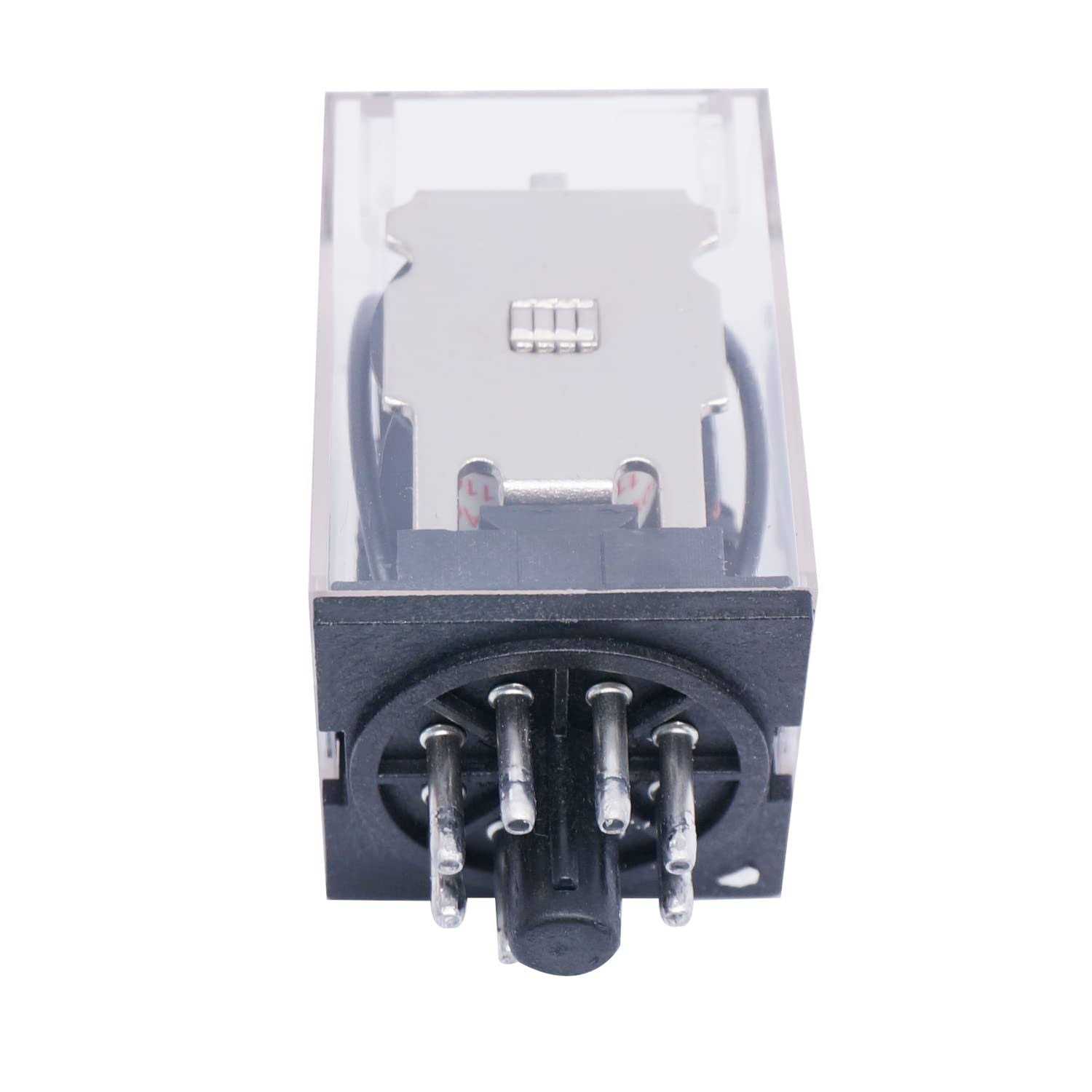

TWTADE/JTX-2C MK2P-I DPDT Power Relay with Plug-in Terminal Socket Base
$7.95
TWTADE/JTX-2C, MK2P-I DPDT Power Relay with Plug-In Terminal Socket Base, AC 24V Coil, 8 Pin 2NO 2NC (Quality Assurance for 1 Years) AC 24V
-
-
- Product Name: Electromagnetic Relay; Coil Voltage: AC 110V; Model : JTX-2C.
- Wiring description For example: 2,3,4 This contact, 3 and 2 are normally open, 3 and 4 are normally closed. Contact: DPDT 2NO 2NC; Number of Pins: 8
- Contact Capacity: 250VAC/28VDC 10A RES; 250VAC 7A GEN

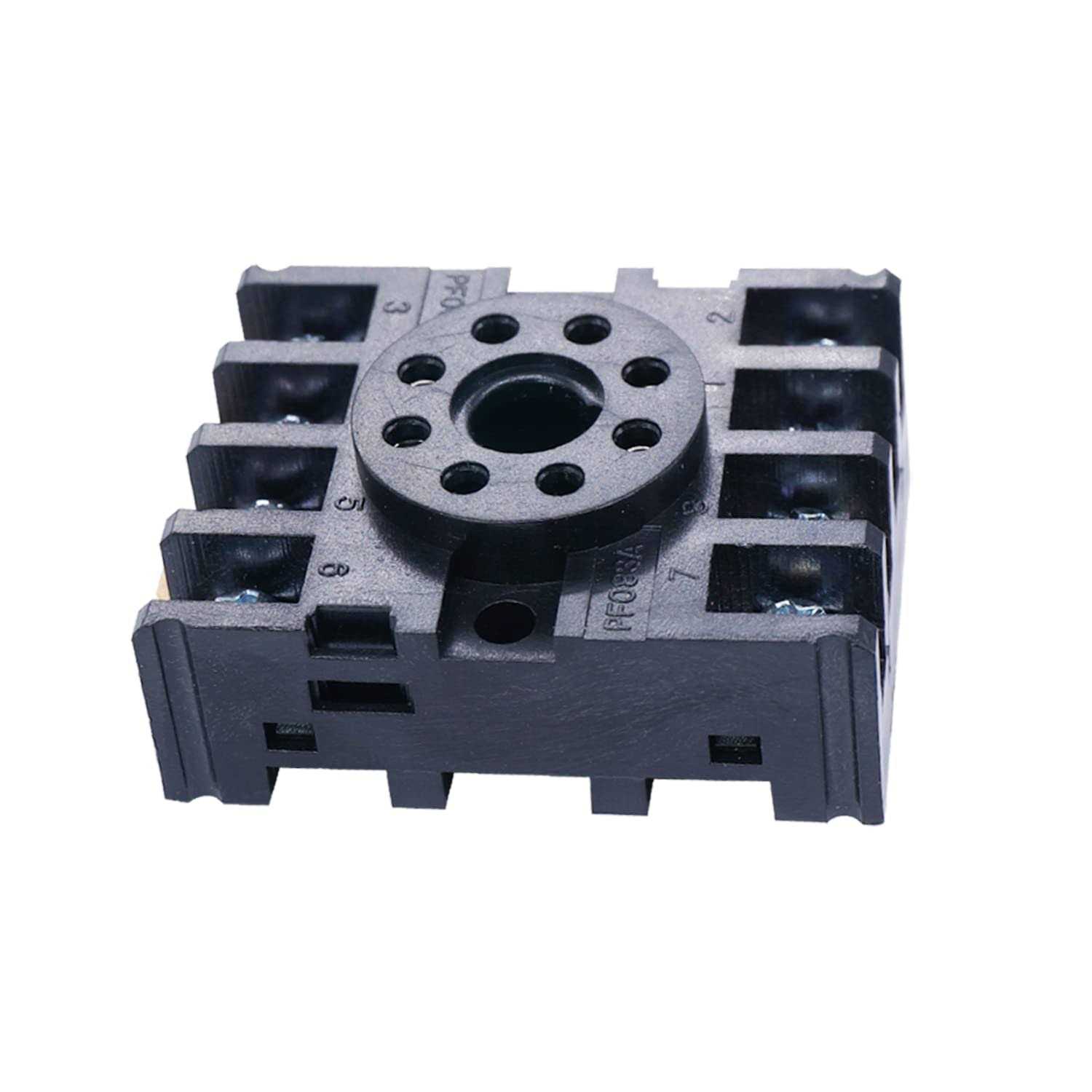

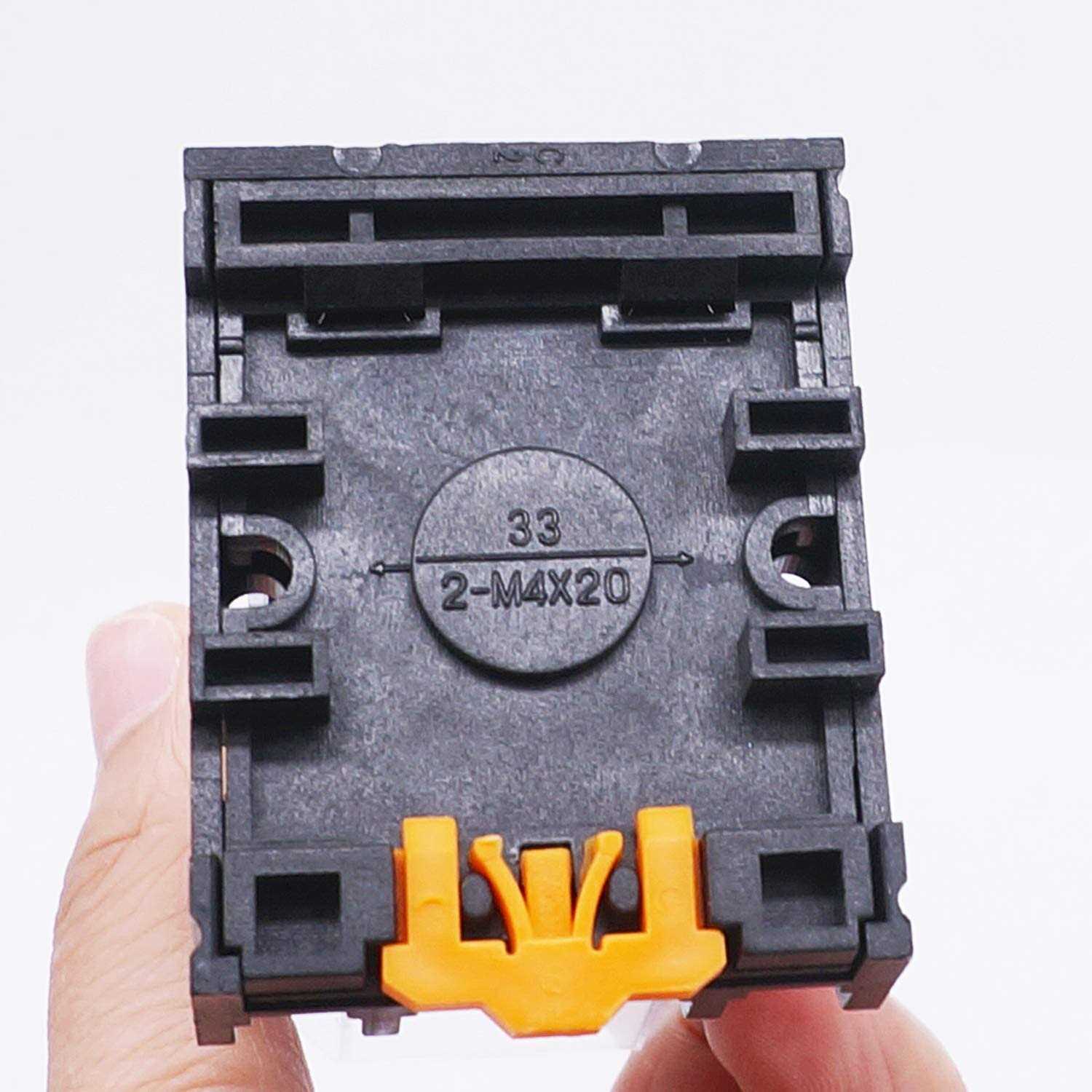

- Total Size (Approx. ): 34 x 34 x 67mm/ 1. 4″ x 1. 4″ x 2. 6″ (L*W*H); Socket Size: 5. 5 x 4 x 2. 1cm/2. 2″ x 1. 6″ x 0. 86″(L*W*T)
- Weight: 104g; Package Content: 1 x Electromagnetic Relay
Product Name: Electromagnetic Relay; Coil Voltage: DC12V; Model : JTX-2C.
- Wiring description For example: 2,3,4 This contact, 3 and 2 are normally open, 3 and 4 are normally closed; Contact: DPDT 2NO 2NC; Number of Pins: 8 .
- Contact Capacity: 250VAC/28VDC 10A RES; 250VAC 7A GEN
- Total Size (Approx. ): 34 x 34 x 67mm/ 1. 4″ x 1. 4″ x 2. 6″ (L*W*H); Socket Size: 5. 5 x 4 x 2. 1cm/2. 2″ x 1. 6″ x 0. 86″(L*W*T)
- Weight: 104g; Package Content: 1 x Electromagnetic Relay
Product Name: Electromagnetic Relay; Coil Voltage: AC 24V; Model : JTX-2C.
-
- Wiring description For example: 2,3,4 This contact, 3 and 2 are normally open, 3 and 4 are normally closed. Contact: DPDT 2NO 2NC; Number of Pins: 8
- Contact Capacity: 250VAC/28VDC 10A RES; 250VAC 7A GEN
- Total Size (Approx. ): 34 x 34 x 67mm/ 1. 4″ x 1. 4″ x 2. 6″ (L*W*H); Socket Size: 5. 5 x 4 x 2. 1cm/2. 2″ x 1. 6″ x 0. 86″(L*W*T)
- Weight: 104g; Package Content: 1 x Electromagnetic Relay
Description
Wiring description: 2, 7,normally open contacts; 4,5,normally closed contact; 3,6, public points; 1,8, the coil voltage contact of the relay;There is a wiring diagram on the product. For example: 2,3,4 This contact, 3 and 2 are normally open, 3 and 4 are normally closed. 8 Terminals, 2PDT 2NO 2NC type, This Relay Exquisite workmanship ,Quality assurance for 1 years. If there are quality problems within 1 years, you can send us email. Can adjust automatically, protect and transform the electric circuit. Used widely in the remote control, communication, automatic control system, electronic equipment’s, etc.
