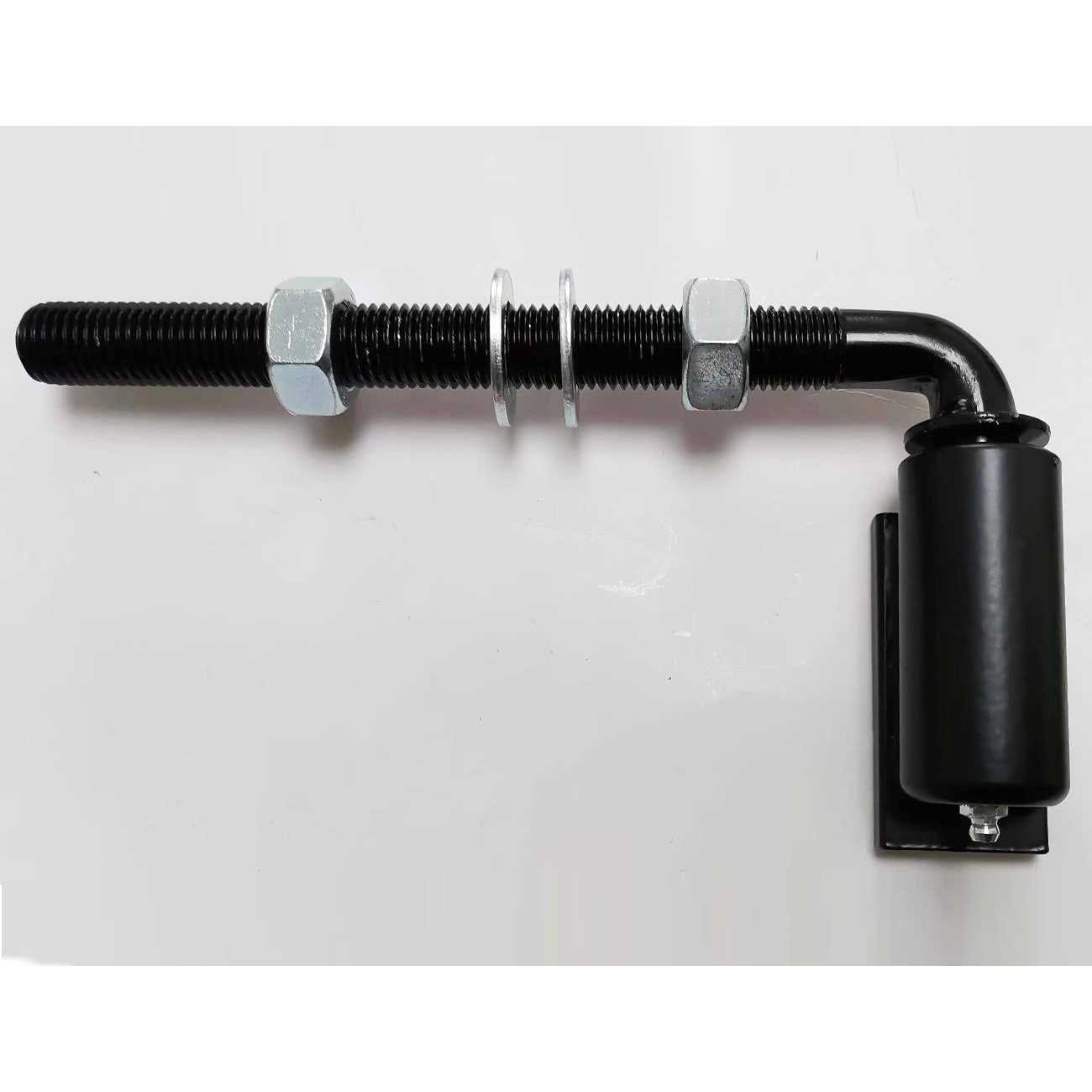

Supreform Universal Heavy Duty J-Bolt Gate Hinge Steel Pivot Hinge Welded Hinge for Welding on Larger Iron or Steel Gates

TURDY – The gate hinge is made of high quality steel so that each pair of the hinge can hold up to 800lbs driveways and security gates! RUST RESISTANT – The black powder coating makes the hinge has a superior rust resistance performance! EASY TO INSTALL – Weld the flat backing plate to the mounting post. If not already available, drill a hole through the gate frame big enough for the threaded bolt. Pass the bolt through, and secure with nuts. Hinges must be mounted with the thread arm at the top. If mounted upside down, the gate will fall.Minimum distance between post and gate should be 2″, to accommodate for the welding plate and barrel. The threaded arm allows you to easily adjust the distance between gate and post! LONG LIFE TIME – Hinge pivots on a steel ball bearing and includes a grease fitting to keep the bearing lubricated. It’ll last a long life time in good maintenance! The supreform 3/4″ steel J-Bolt Adjustable Barrel hinges provide full range of swing for gates and doors. Made of high quality steel. The threaded arm allows you to easily adjust the distance between gate and post. Each pair of J-bolt hinges can hold up to 800 lbs, making them an excellent choice for driveways and security gates. br The total length of each hinge is 8 1/2″, with the threaded arm measuring 7 1/2″. Minimum distance between post and gate should be 2″, to accommodate for the welding plate and barrel. br Installation Instructions Weld the flat backing plate to the mounting post. If not already available, drill a hole through the gate frame big enough for the threaded bolt. Pass the bolt through, and secure with nuts. Hinges must be mounted with the thread arm at the top. If mounted upside down, the gate will fall. br
