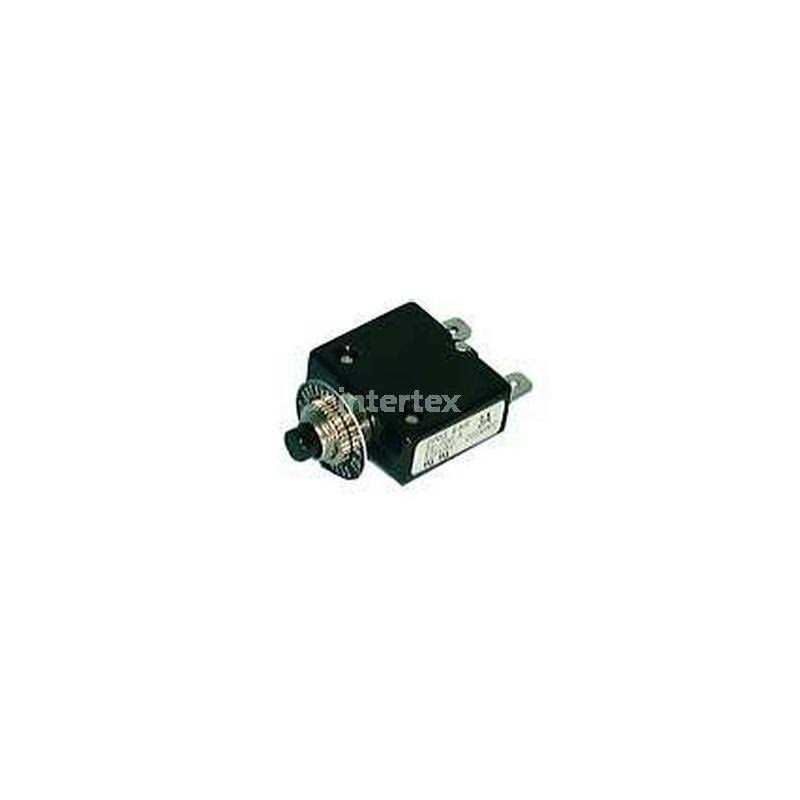

Philmore 30 Amp Push Button Circuit Breaker 32v DC or 250v AC
$5.95

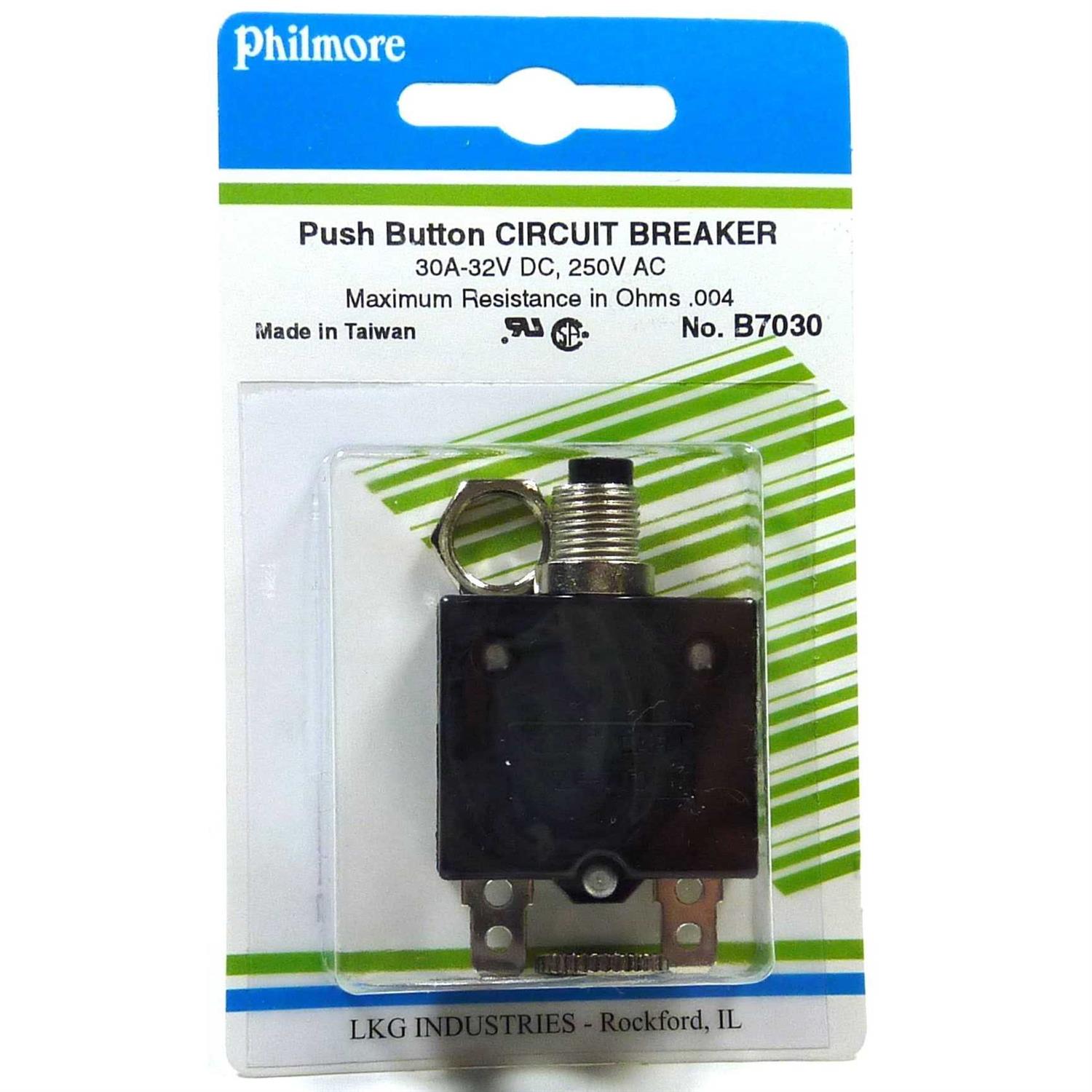

Philmore 30 Amp Push Button Circuit Breaker 32V DC or 250V AC ; B7030
- Current Rating: 30A@
- Max resistance in ohms: .004
- Trip time @ 200% of rating: 6-30 seconds
- Endurance: 1,000 times +
- Dielectric Strength: Over 1,500 volts RMS
- Max. Operating Voltages: 50VDC, 250VAC
- Interrupt Capacity: 2,000 Amps at 50 VDC (1-30 amp Models) 1,000 Amps, at 250VAC (1-30 amp Models)
Description
For operation up to 32 volts DC or 250 volts AC. Recommended mounting hole: 0.437″ (7/16″). Not designed for push on / push off manual switch operation, but the button pops out at overload and is reset by pushing back in. Endurance: 1,000 times at least.
