Pass & Seymour 20A 125V Self-Test GFCI Tamper-Resistant 2097TR

$13.95

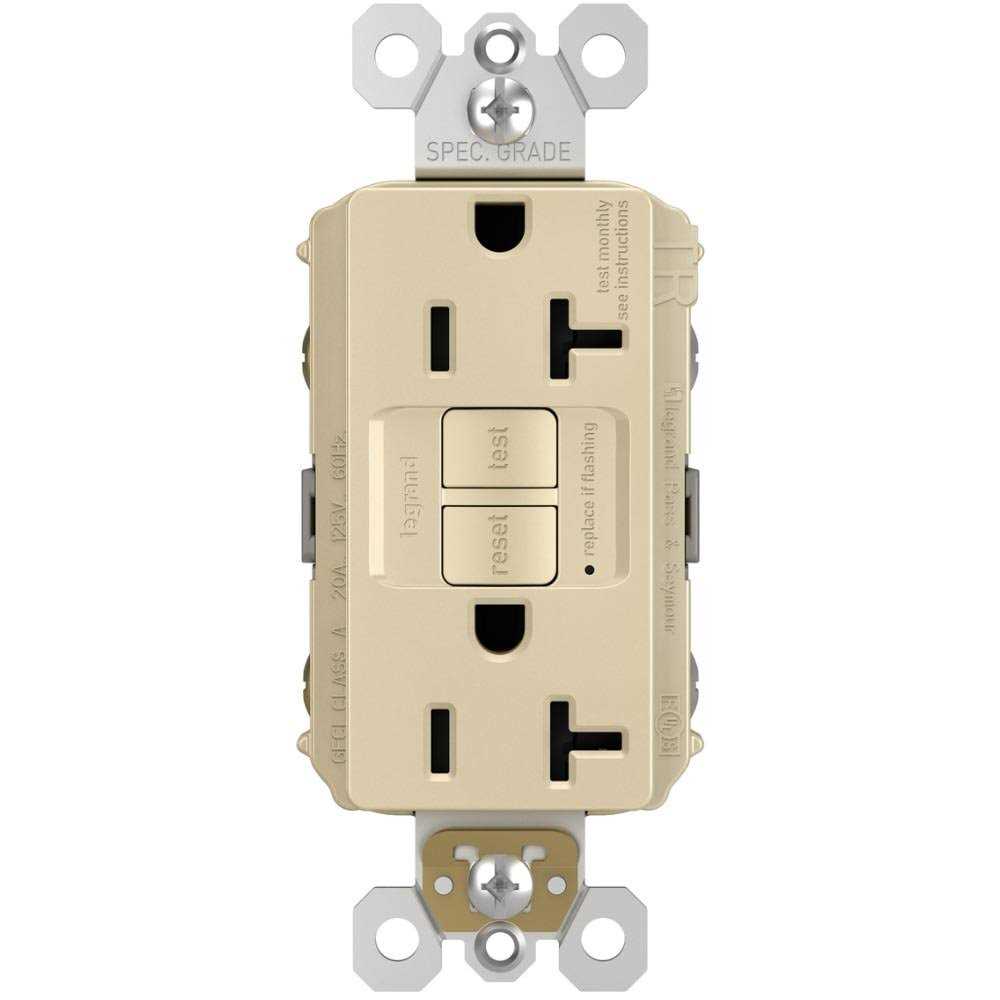

Pass & Seymour 2097TRI Spec-Grade Tamper-Resistant 20A Self-Test GFCI, Ivory

    • Part of the all-new radiant collection.
    • Protects children: patented shutter system helps prevent improper insertion of foreign objects.
    • Meets National Electrical Code Tamper-Resistant requirements.
    • Thinner than competitors’ GFCI Receptacles: leaves more room for wires in the box.
    • Auto-Ground clip assures a positive ground to metal box.
    • Feed-thru wiring configuration allows GFCI to protect downstream receptacles.
    • Prevents line-load reversal miswire: no power to the face or downstream receptacles if wired incorrectly.
    • Trip indicator light (red LED).

    Protects Children-Patented Shutter System Helps Prevent Improper Insertion of Foreign Objects

  • Meets National Electrical Code Tamper-Resistant Requirements
  • Conducts an Automatic Test Every Three Seconds, Ensuring its Always Ready to Protect
  • If the Devic

FREE SHIPPING ON ORDERS OVER $50

Pass & Seymour Radiant 2-Pole 3-Wire self-test GFCI duplex receptacle in ivory color, has voltage rating of 125-Volt AC and current rating of 20-Amps at 60-Hz. Tamper-resistant receptacle has short-circuit current rating of 10-Kilo-Amps. Specification grade receptacle accommodates 14 – 10-AWG solid or stranded copper wire. It features back and side-wired connection to ensure easy installation. It measures 1.73-Inch x 1.03-Inch x 4.2-Inch. SafeLock protection feature of this receptacle disconnects power when critical components are been damaged and protection is lost. It has dielectric strength of 1500-Volts. Receptacle features high-impact-resistant thermoplastic face and body. It comes with matching TP wallplate, mounting screws and extra-long galvanized steel strap. It prevents line load reversal miswire. It has 0.031-Inch brass contact and offers optimal contact and conductivity. Auto-grounding receptacle has NEMA 5-20R configuration. It is suitable for industrial, healthcare, education, institutional, retail, office, hospitality/lodging and multiple dwelling. It withstands temperature rating of -35 to 66 deg C. Receptacle is UL/cULus listed, CSA certified and meets NEMA standards.
