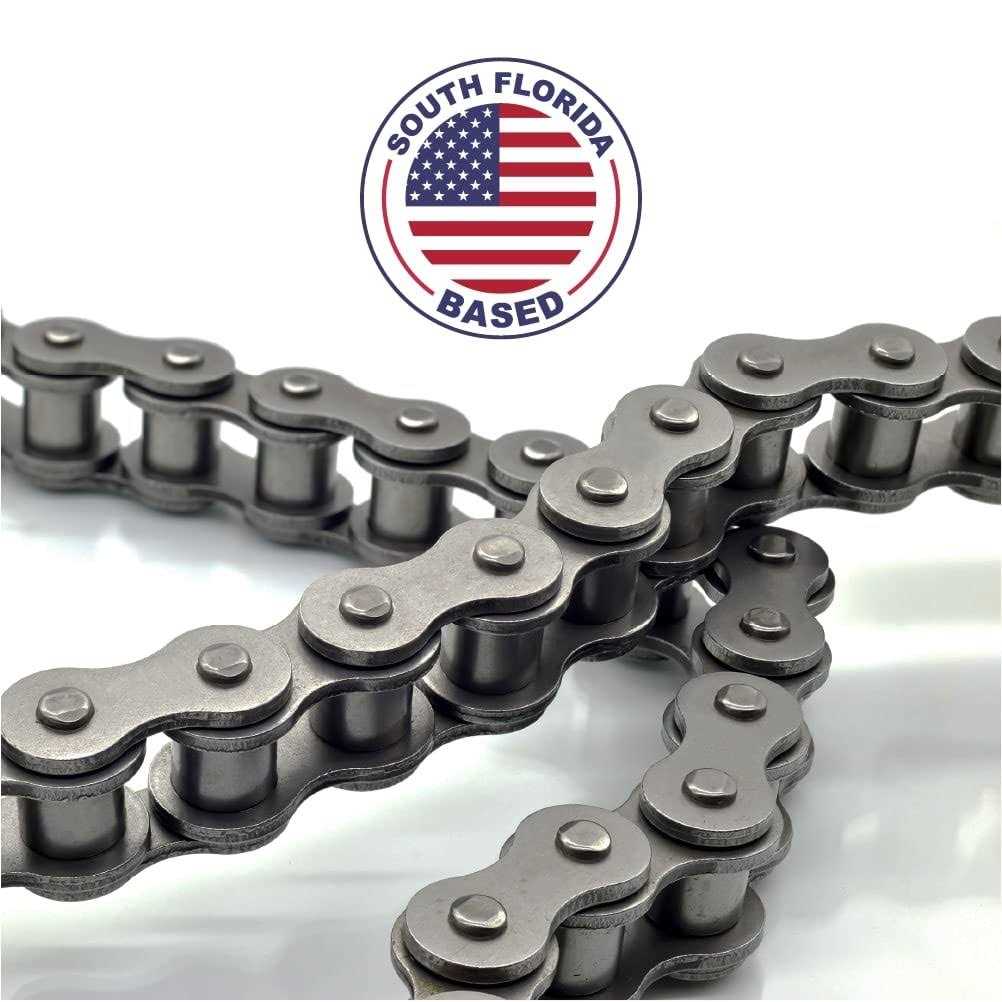

Heavy Duty Roller Chain x 10 feet + 2 Free Links – Pgn

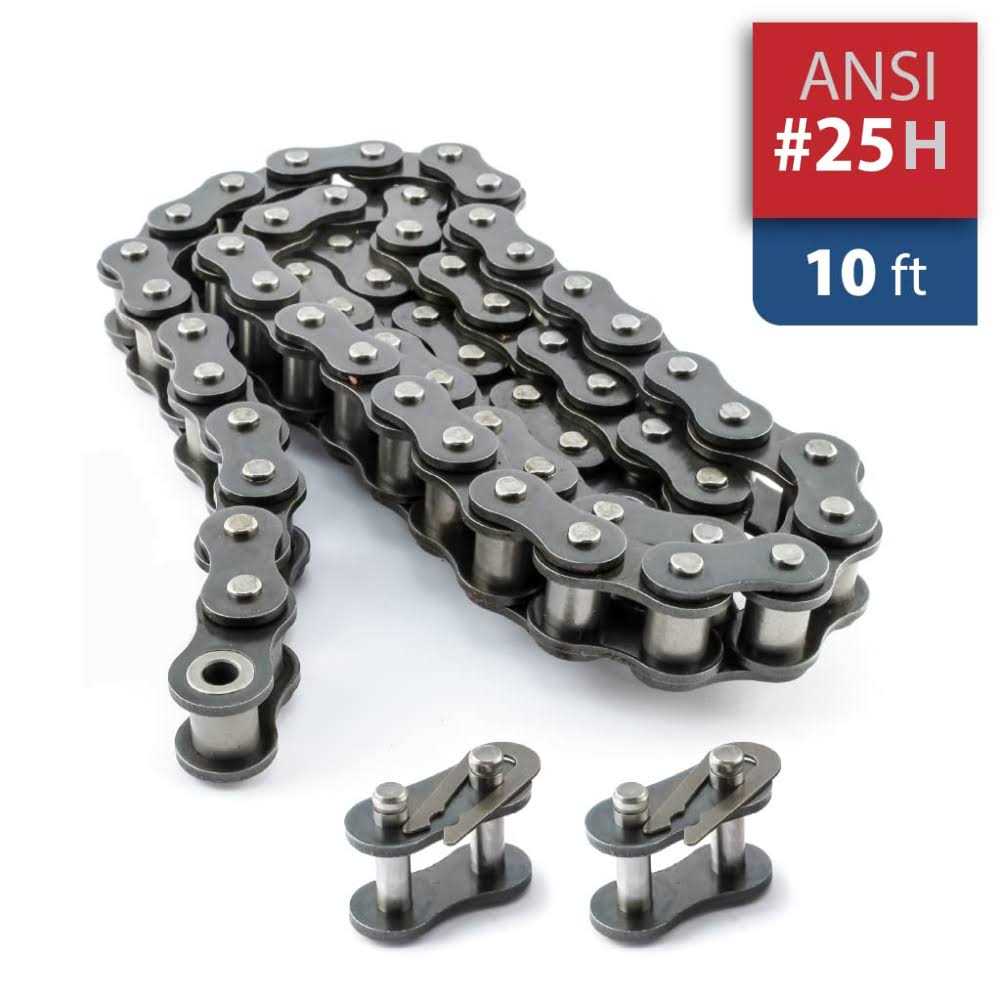

ANSI Chain No.: #25H Length: 10 feet Pitch : 0.25 inch (6.35 mm) Roller Diameter (d1 max): 0.13 inch (3.3 mm) Width Between Inner Plates (b1 min): 0.125 inch (3.18 mm) Pin Diameter (d2 max): 0.091 inch (2.31 mm) Pin Length (L max): 0.35 inch (8.89 mm) Pin Length (Lc max): 0.374 inch (9.5 mm) Inner Plate Depth (h2 max): 0.236 inch (5.99 mm) Plate Thickness (T max): 0.041 inch (1.04 mm) Ultimate Tensile Strenght (Q min): 4.8 kN (1,079 lb) Average Tensile Strenght (Qo): 5.5 kN Weight (q): 0.114 lb/ft (0.17 kg/m)
