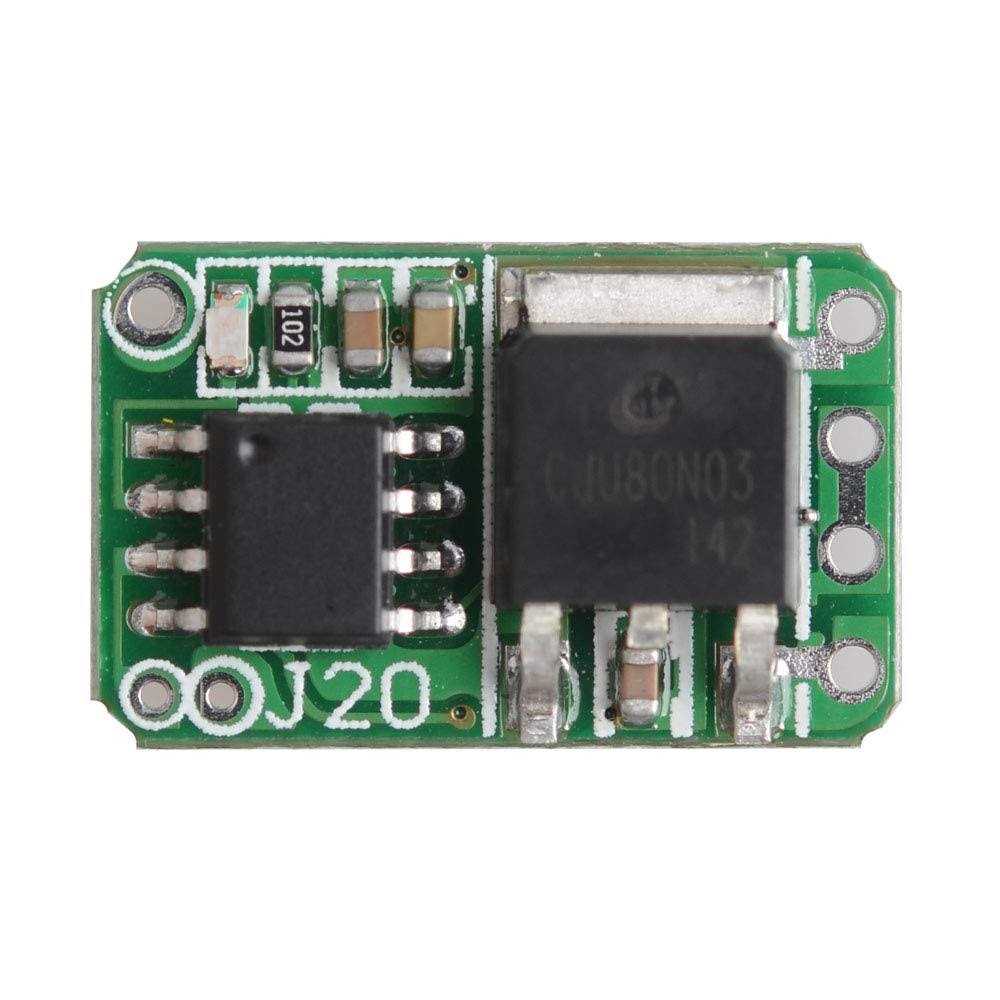

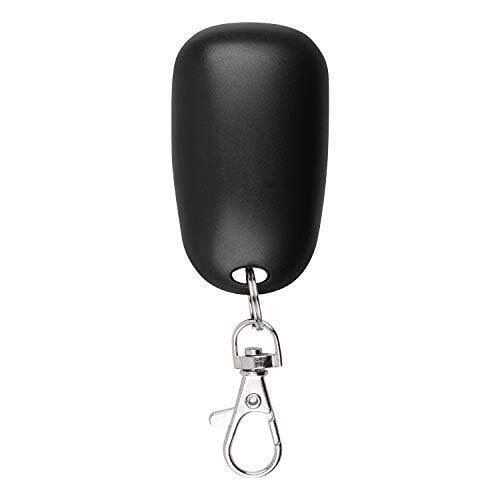

DC 3.7V -12V 3A Mini Wireless Remote Control Switch LED Lamp Controller 433MH

Working Voltage: DC3.5V-DC12V br 2. Max Load: 3A (have better load less than 2A) br 3. Working Frequency: 433.92MHz br 4. Standby Quiescent current :0.1ma br 5. Working Current: 7ma br 6. Frequency Deviation: more or less than 0.2MHz br 7. Working temperature: -20’C- +80’C br 8. Receiving Sensitivity: ≥-110dBm br 9. Output State: Input DC3.5V-DC12V ,Output DC3.5V-DC12V br 10: Module size: 0.68inch*0.42inch*0.18inch br 11. Output state: Momentary, Toggle, Latched, Delay 5 seconds adjustable br br Learning Code: br Input 12V for the Receiver , Connect the set point , The receiver Led indicator ON. Press remote button 1 time, Led indicator flash for 1 times , Then Press remote button 1 time , Led indicator flash for 1 times again , it mean learning successfully br br Clearing Code: br Connect the set point . Until the receiver Led indicator flash for 5 times, it mean Clearing Code br br Working model : br Momentary———1Button —–Press the button is ON . Release the button is OFF br Toggle————1 Button —– Press one button for one time is ON .press the same button again is OFF br Delay time : Press remote control A button, the corresponding relay actuates and keeps working until the time out.( 5S) br br How to change working model : br Momentary: Connect the set point . Until the receiver Led indicator flash for 1 times, it mean Change Momentary successfully. br Toggle: Connect the set point . Until the receiver Led indicator flash for 2 times, it mean Change Toggle successfully. br M4 Signal temporary : Connect the set point . Until the receiver Led indicator flash for 4 times, it mean Change Delay time successfully. br br br About Transmitter: br 1. Buttons: 2 Buttons br 2. Working Voltage:DC6V (2PCS CR2016) br 3. Operating frequency :433MHz br 4. Remote Distance: 20-50M br 5. Operating Current: 13 mAh br 6. Encode: EV1527 code br 7. Size: 5.7 x 3.2 x 1.1cm
