Bunker Indust 50a 6-10 Gauge Battery Quick Connect Disconnect Wire Harness Plug Kit 4 Pcs Battery Cable Quick Connect Disconnect Plug For Winch Auto C

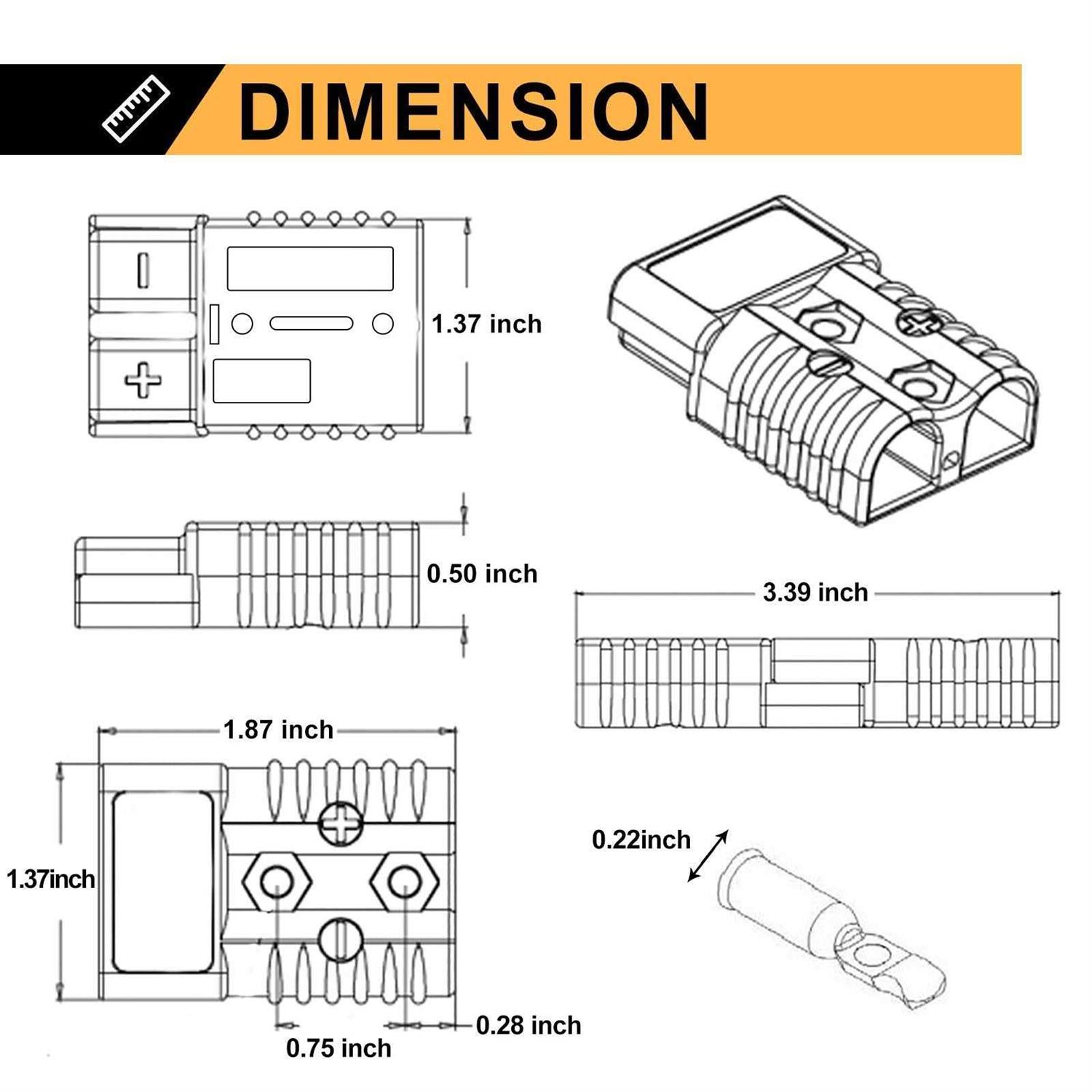

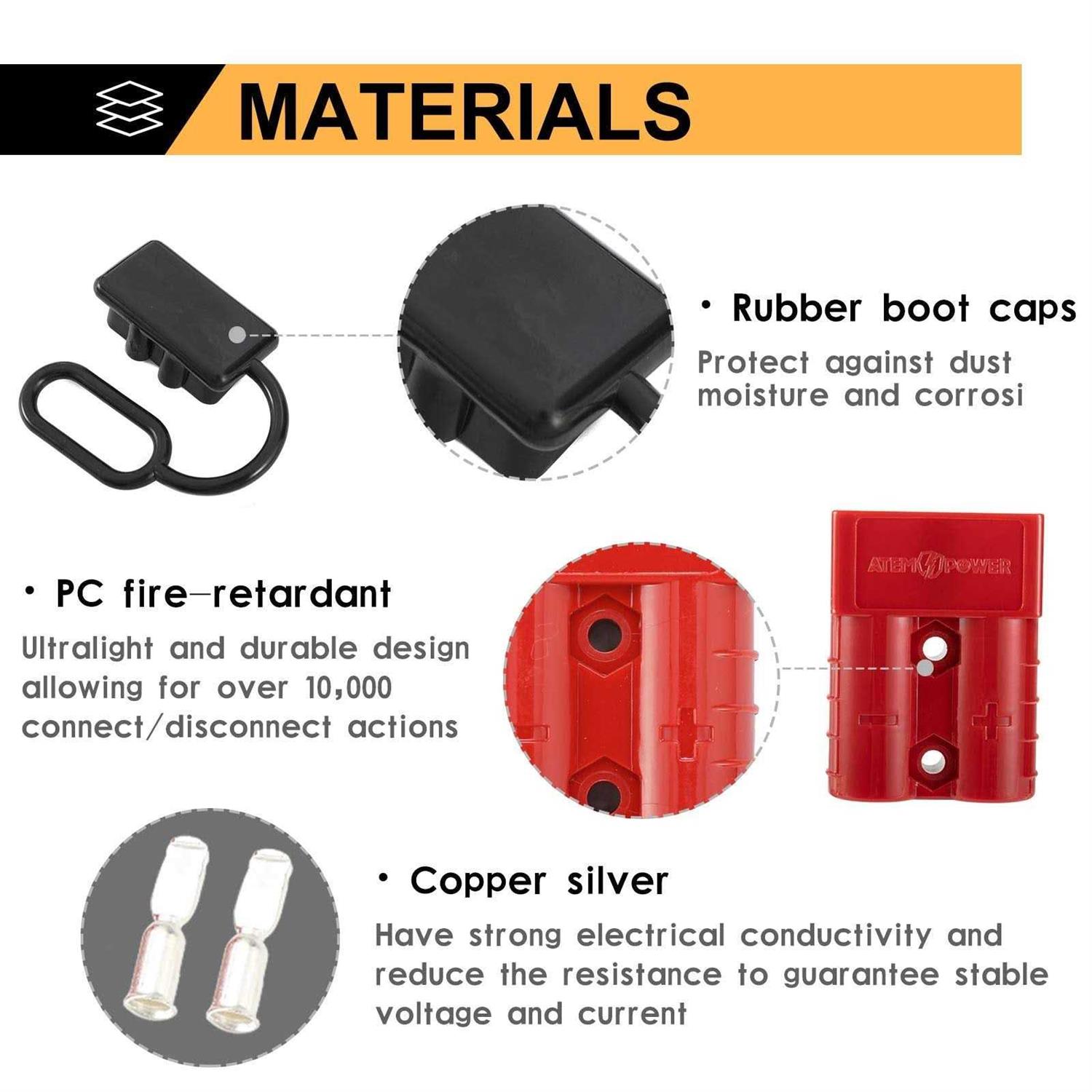

Quick Connect Systems by BUNKER INDUST. Details: Specifications 1Color: Red 2Material: PC fire-retardant materials+stainless steel 3Current Rating: 50A 4Gauge: 6-10 A.W.G 5Rated Voltage: UL rated at 600 volts DC or AC 6Contacts material: copper silver 7Fire rating: 94-V0 8Connector Dimension: 1 7/8″” long x 1 3/8″” wide x 1/2″” thick 9Terminal Pins Diameter: 0.22″ 10Medium Withstanding Voltage: 2200DC 11Connect/disconnect Cycles: 10,000 times 12Operating Temperature Range:-4°F-221°F / -20°C-105°C 13Suitable For: UPS battery power connector How to Install Insert the wires into the terminal pins, then solder or crimp them. Insert the terminal pins into the connector housing and lock them in place Operating Temperature Range: -4°F-221°F / -20°C-105°C Connector Dimension: as the picture show Vibration Resistance: Excellent Impact Resistance: High Package includes 4x Connectors 8x Terminal pins
