Blum 20K1301 AVENTOS HK-XS Lift Mechanism

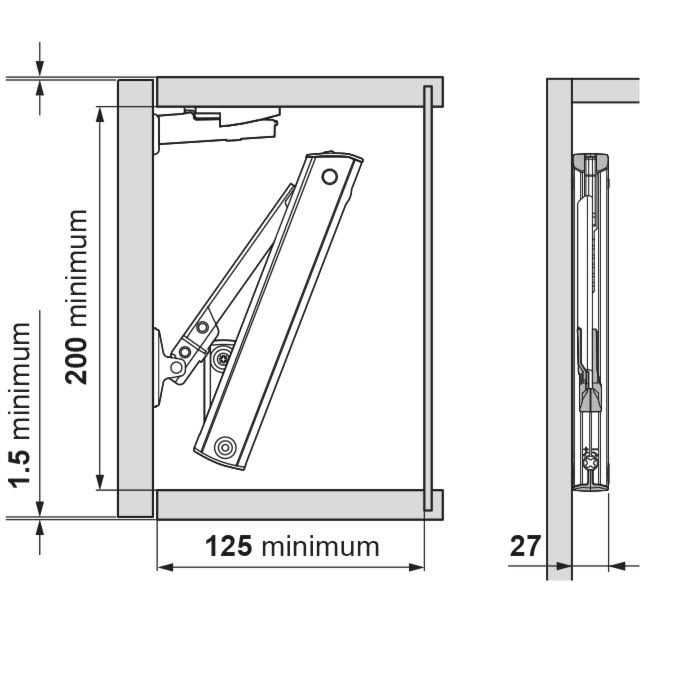

Features:Well suited to work with small wall cabinets – Designed to work with BLUMOTION hinges – Lift mechanism is engineered for use on one or both sides of the cabinet – Lift mechanism has a power factor range of 61 to 112 for a single lift and 121 to 224 for two lifts – Power factor is calculated by multiplying door weight (D) with cabinet height or P = D x CA trial application is highly recommended if calculated power factor is borderline of lift mechanism’s range – Include one (1) lift mechanism arm – Specifications:Cabinet Height: 9-3/8 inch to 24 inch – Maximum Internal Cabinet Width: 72 inch – Minimum Internal Cabinet Depth: 5 inch – Power Factor: 120-224 (Power Factor = Cabinet Height x Door Weight)Product Variations:20K1101: Lift Mechanism with Power Factor from 34 to 11920K1301 (This Model): Lift Mechanism with Power Factor from 120 to 22420K1501: Lift Mechanism with Power Factor from 225 to 312
